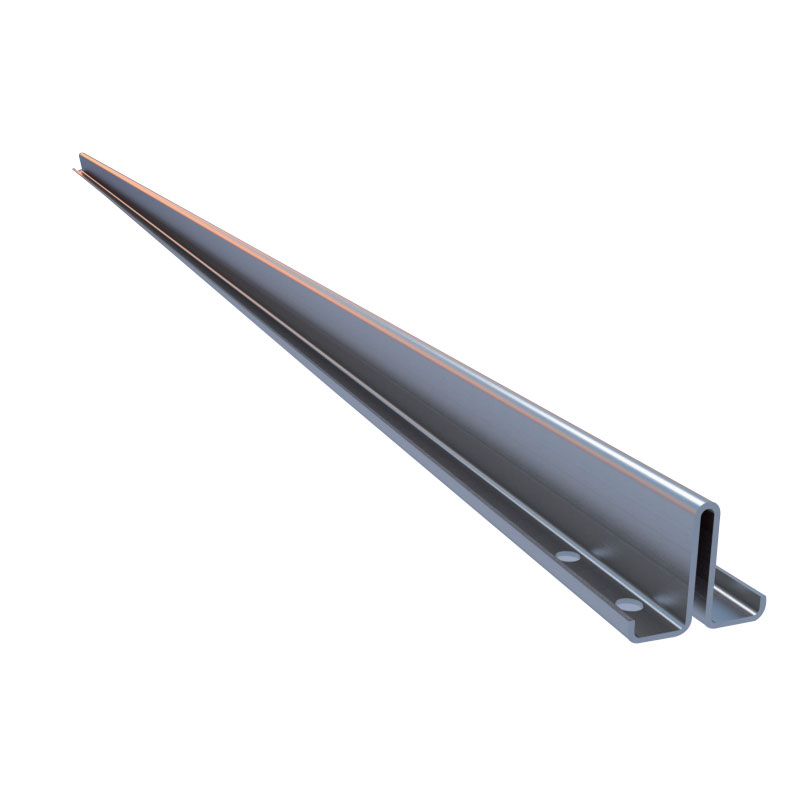

PEMASOK KERETA API HOLLOW
Sesuai dengan standar JG/T 5072.3 1996, beradaptasi dengan kecepatan lari elevator ≤ 1,6 m/s.
| Ukuran | ||||||||||||||
| Penamaan | b1 | C | f | h1 | h2 | k | m | r1 | a | b3 | l2 | l3 | d | |
| Tipe Tepi Datar | Toleransi | |||||||||||||
| ±1,0 | - | ±0,2-0,15 | 0-0,5 | - | ±0,40 | - | - | +60' +20' |
±0,5 | ±0,5 | ±0,5 | - | ||
| TK3 | 75 | ≥1.8 | 2.2 | 55±0,2 |
|
10±0,2 | 25 | 5 | 90° | 43 | 90 | 30 | 10 | |
| TK5 | 87 | ≥1.8 | 3.0 | 60 |
|
16.4 | 25 | 3 | 90° | 50 | 180 | 20 | 14 | |
| Tipe Tepi Terangkat | Toleransi | |||||||||||||
| ±1,0 | - | +0,2-0,15 | ±0,3 | ±1,0 | ±0,45 | - | - | +60' +20' |
±0,5 | ±0,5 | ±0,5 | - | ||
| TK3A | 78 | ≥1.8 | 2.2 | 60 | 10 | 16.4 | 25 | 3 | 90° | 45 | 75 | 25 | 11.5 | |
| TK5A | 78 | ≥1.8 | 3.0 | 60 | 10 | 16.4 | 25 | 3 | 90° | 45 | 75 | 25 | 11.5 | |
| Karakteristik Teknis | ||||||||||
| Penamaan TK3 |
S | q1 | E | lx-x | Wx-x | lx-x | lY y | WY y | lY y | |
| c㎡ | kg/m | cm | cm⁴ | cm³ | cm | cm⁴ | cm³ | cm | ||
| 3.48 | 3.01 | 1.86 | 11.89 | 3.27 | 1.85 | 6.47 | 1.73 | 1.3 | ||
| TK5 | 8.56 | 4.60 | 2.15 | 26.90 | 6.99 | 2.08 | 18.61 | 4.28 | 1.73 | |
| TK3A | 4.36 | 3.74 | 2.18 | 18.09 | 4.74 | 2.04 | 13.62 | 3.49 | 1.77 | |
| TK5A | 6.17 | 4.85 | 2.14 | 24.33 | 6.3 | 1.99 | 18.78 | 4.82 | 1.74 | |
| Jarak antara lubang, pelat ikan dan baut (mm) | |||||||||||
| Penamaan | b2 | h3 | h | u | b3 | l1 | l2 | l3 | Baut | Mesin cuci | |
| Toleransi | |||||||||||
| - | ±1 | ±0,2 | - | ±0,5 | ±1,5 | ±0,5 | ±0,3 | - | - | ||
| TK3 | 72 | 40 | 6 | 3 | 43 | 220 | 90 | 30 | M8x25 | A-8 | |
| TK5 | 88 | 59 | 10 | 4.5 | 50 | 400 | 180 | 20 | M12x30 | A-12 | |
| TK3A | 78 | 50 | 12 | 3 | 45 | 200 | 75 | 25 | M10x30 | SEBUAH-10 | |
| TK5A | 78 | 50 | 10 | 4 | 45 | 200 | 75 | 25 | M10x30 | SEBUAH-10 | |
| Penamaan | Parlemen | Kosong Toleransi maks 1,0m/dtk. |
| Kelurusan | f/m maks. f/5m maks. |
0,5 mm 2.5mm |
| Memutar | R maks. | 1mm |
| Sudut |
P M |
0,30mm 0,20 mm |
